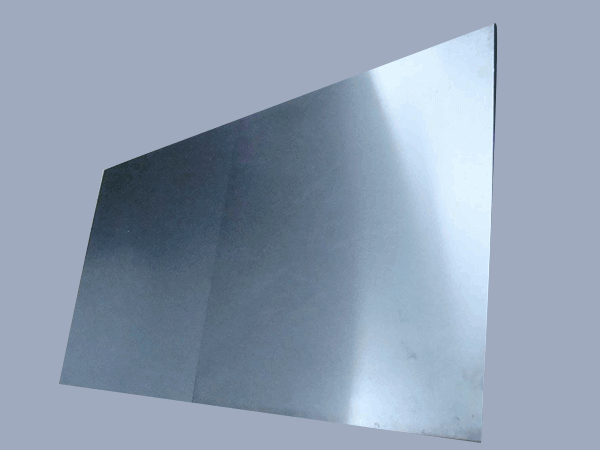

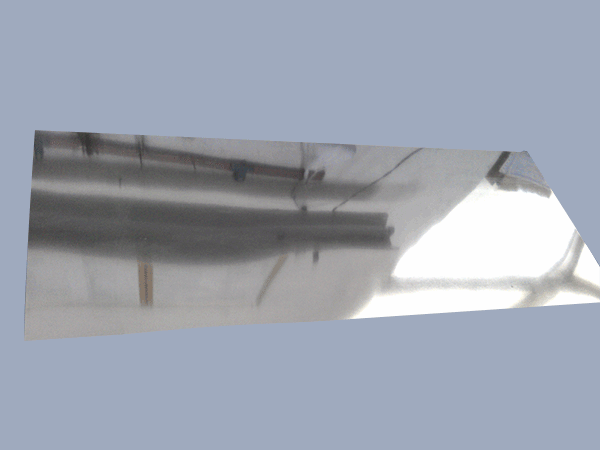

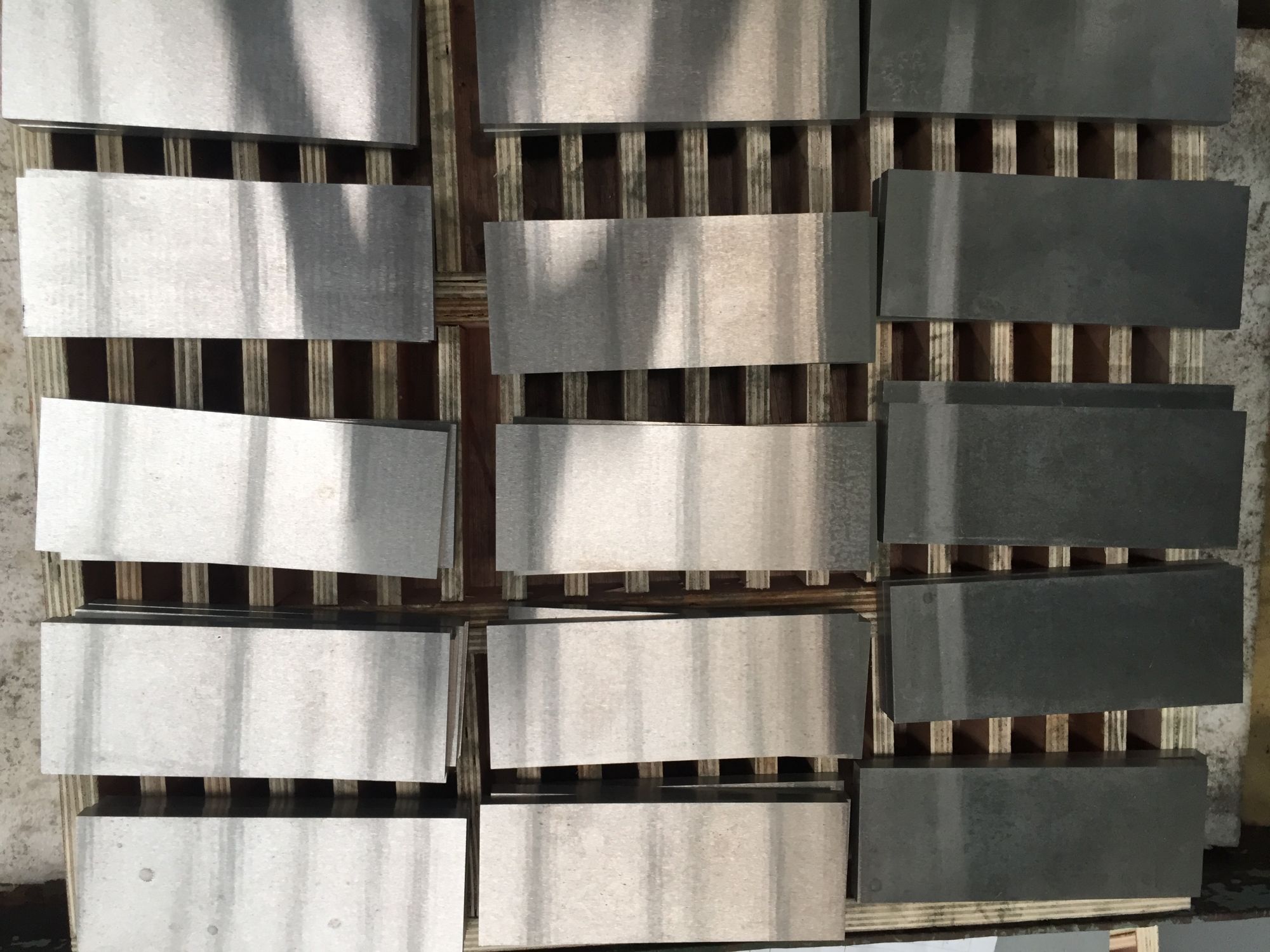

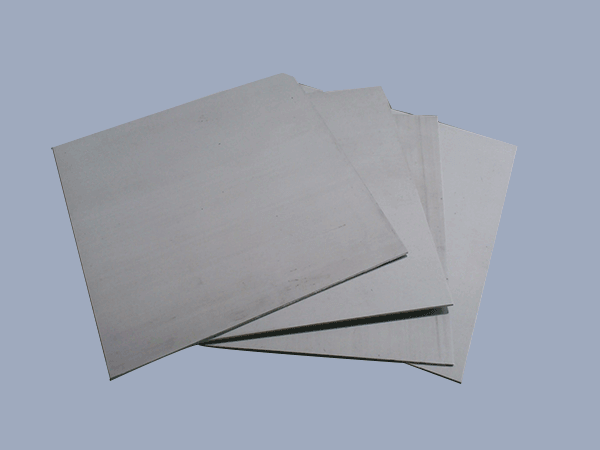

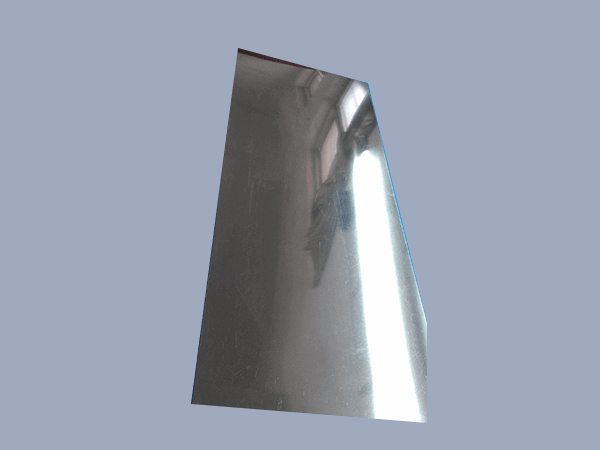

Tungsten Plate
Heat shield and heat elements for high-temperature furnace/electric light source parts/components of electric vacuum/sputtering targets/medical equippment CT
99.95% W1
Long service life
High Purity: 99.95%min.
Precisely Machining
Detailed Description
Grade :W1
Standard : GB/T 3875-2006
Application: Suitable for high temperature structure parts, processing high temperature shields, boats, targets, etc.
Parameter
| Commodity | Thickness(mm) | Width(mm) | Length(mm) |
| Tungsten Plate | 1.5-2.0 | 150 | 200 |
| 2.0-3.0 | 200 | 250 | |
| 3.0-4.0 | 250 | 600 | |
| 4.0-6.0 | 300 | 600 | |
| 6.0-8.0 | 300 | 800 | |
| 8.0-10.0 | 300 | 750 | |
| 10.0-14.0 | 200 | 650 | |
| >14.0 | 200 | 500 |
